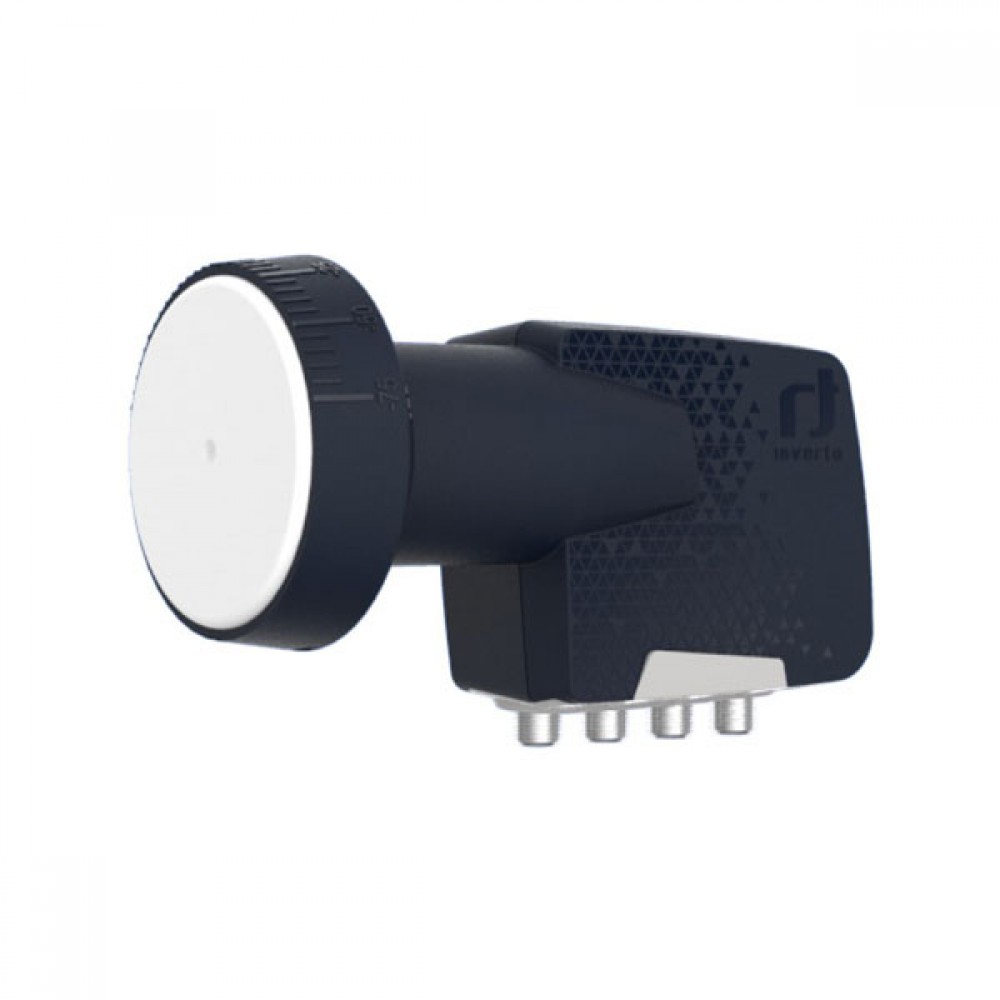

LNB Inverto Quad Premium

Τετραπλό LNB (με τέσσερις εξόδους για τέσσερις δέκτες).

Χαρακτηριστικά:

• Input frequency range 10.7 GHz ~ 12.75 GHz
• Output frequency range 950 MHz ~ 2150 MHz
• Low band LO frequency 9.75 GHz
• High band LO frequency 10.6 GHz
• Noise figure 0.2 dB typ. (0.7 dB max.)
• LO frequency accuracy @ 25° C ±500 kHz max.
• LO temperature drift ±1.0 MHz max.
• LO phase noise @ 10 kHz -80 dBc/Hz max.
• Conversion gain 55 dB min.
• Gain ripple (over 26 MHz bandwidth) ±0.6 dB
• Gain variation (over full band) ±3 dB
• Image rejection 40 dB min.
• 3th order intermodulation - ICP3 10 dBm min.
• 1 dB compression point (@ output) 0 dBm min.
• Cross polarization isolation 22 dB typ., 20 dB min.
• Control signal Ca (V) 11.0 V ~ 14.0 V
• Control signal Cb (H) 16.0 V ~ 20.0 V
• Control signal Cc (band switching) 22 kHz ±4 kHz, 0.4 V ~ 0.8 V pp
• Output VSWR 2.5 : 1
• In band spurious level -60 dBm max.
• Current consumption 120 mA max. @ 11 VDC ~ 20 VDC
• Operating temperature -35 °C ~ +60 °C
• Output impedance (LNB2) 75 Ω
• Output connector type F-type (female)
• Dish F/D ratio 0.6
